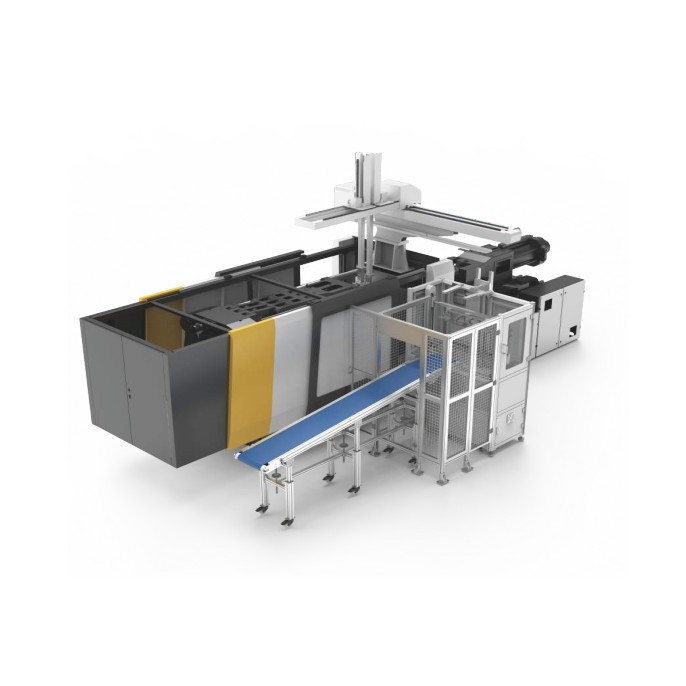

Side Entry IML System For Plastic Box

The Side Entry IML System For Plastic Box integrates the pre-printed label with the plastic product during the injection molding process by placing the pre-printed label in the mold. This kind of equipment is widely used in multiple industries such as engine oil, daily chemical products, and food to achieve efficient and precise labeling operations.

Device Composition and working principle of Side Entry IML System For Plastic Box

Label conveying system: Responsible for conveying labels from the label library to the molds.
Mold system: It includes molds for forming plastic products and vacuum holes for adsorbing and fixing labels.
Injection molding system: It is responsible for injecting molten plastic into the mold and combining it with the label to form a whole.
Mechanical hand: It is used for grasping and placing labels, as well as taking out the formed products.

The labels are conveyed to the designated positions inside the molds.
The mold quickly closed, and the vacuum holes firmly adhered the label inside the mold.
The injection molding system injects molten plastic into the mold to combine with the label.
After the mold cools down, open it and take out the formed product.
